Ferrules are the elements used to assemble the hydraulic fittings on hydraulic hoses for high pressure. They are specially designed for rubber hydraulic and thermoplastic hoses and are widely used as well in industrial hoses. Ferrules are assembled on crimping machines for a permanent connection or by screwing in the case of reusable ferrules. According to the way the fittings are assembled on the hose, we distinguish the types of two-piece crimp fittings, that is, ferrule and insert or one-piece fitting.
Hydraulic hose fitting connects to a tube, hose, or port. A port connection is part of a component, such as a manifold or a pump. Hydraulic adapters are used to connect hydraulic hoses and pipes to pumps, valves, hydraulic cylinders, and other parts of the hydraulic system.

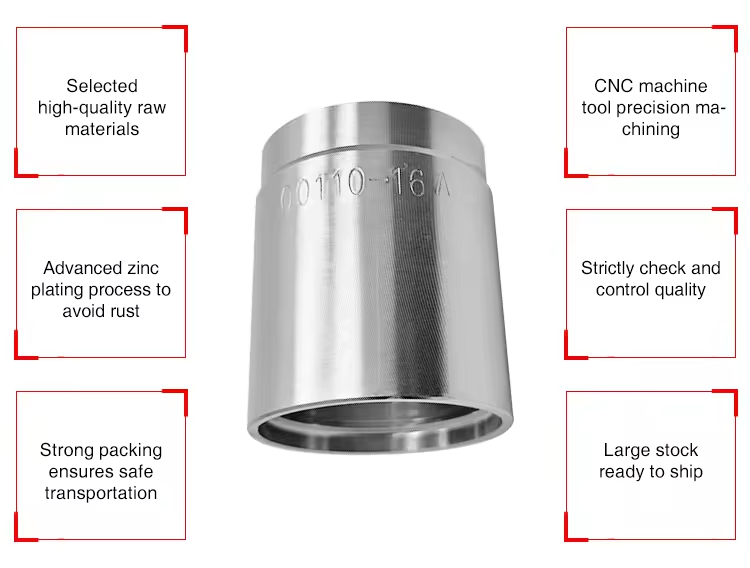

Hydraulic Hose Ferrules are designed to securely crimp the hose onto the fitting, creating a leak-proof connection.
Available in different shapes and sizes to accommodate various hose types and sizes.
- Ferrule for Braided/Spiral Wire Hose
- Ferrule for SAE 100R1AT/DIN20022 1ST Hose
- Ferrule for SAE 100R1AT/DIN20022 1SN Hose
- Ferrule for SAE 100R2AT/DIN20022 2ST Hose
- Ferrule for SAE 100R2AT/DIN20022 2SN Hose
- Ferrule for 4SH/4SP/R12 Hose
- Ferrule for SAE 100R7 Thermoplastic Hose
- Ferrule for SAE 100R14 PTFE Hose
- Ferrule for SAE 100R5 Hose
- Ferrule for SAE 100R13 Thermoplastic Hose
These ferrules are used when crimping the tails of hydraulic hoses with male or female connectors.
Hydraulic Hose Ferrule Size Chart:
| SAE 100R1AT/DIN20022 1SN Hose Ferrule |
| PART NO |
HOSE BORE |
Dimensions |
| DN |
DASH |
L |
| 00110-03 |
5 |
03 |
24.5 |
| 00110-04 |
6 |
04 |
30 |
| 00110-05 |
8 |
05 |
31 |
| 00110-06 |
10 |
06 |
32 |
| 00110-08 |
12 |
08 |
34 |
| 00110-10 |
16 |
10 |
37 |
| 00110-12 |
20 |
12 |
43 |
| 00110-16 |
25 |
16 |
50 |
| 00110-20 |
32 |
20 |
59 |
| 00110-24 |
40 |
24 |
74 |
| 00110-32 |
50 |
32 |
78 |
| Part No. |
DN |
DASH |
L |
| 00210-04 |
6 |
4 |
30 |
| 00210-05 |
8 |
5 |
31 |
| 00210-06 |
10 |
6 |
32 |
| 00210-08 |
12 |
8 |
34 |
| 00210-10 |
16 |
10 |
37 |
| 00210-12 |
20 |
12 |
43 |
| 00210-16 |
25 |
16 |
50 |
| 00210-20 |
32 |
20 |
59 |
| 00210-24 |
40 |
24 |
74 |
| 00210-32 |
50 |
32 |
78 |
| PART NO. |
HOSE BORE |
DIMENSIONS |
| DN |
DASH |
D |
L |
| P03310-03 |
5 |
3 |
21 |
23 |
| P03310-04 |
6 |
4 |
23 |
30.5 |
| P03310-05 |
8 |
5 |
24 |
30 |
| P03310-06 |
10 |
6 |
26 |
32 |
| P03310-08 |
12 |
8 |
29 |
34 |
| P03310-10 |
16 |
10 |
33 |
37 |
| P03310-12 |
20 |
12 |
37 |
42 |
| P03310-16 |
25 |
16 |
46 |
51 |
| P03310-20 |
32 |
20 |
59 |
59 |
| P03310-24 |
40 |
24 |
|
74 |
| P03310-32 |
50 |
32 |
|
78 |
| 代号 |
软管 HOSE BORE |
尺寸 DIMENSIONS |
| PART NO. |
公称内径DN |
标号DASH |
L |
| 00400-04 |
6 |
4 |
37.5 |
| 00400-06 |
10 |
6 |
39 |
| 00400-08 |
12 |
8 |
41 |
| 00400-10 |
16 |
10 |
43 |
| 00400-12 |
20 |
12 |
51 |
| 00400-16 |
25 |
16 |
61.5 |
| 00400-20 |
32 |
20 |
67.5 |
| 00400-24 |
40 |
24 |
75 |
| 00400-32 |
50 |
32 |
79 |
