High Pressure Spiral Steel Wire Rubber Pipe SAE 100 R15 Heavy Duty Hydraulic Hose

Name: High Pressure Spiral Steel Wire Rubber Pipe SAE 100 R15 Heavy Duty Hydraulic Hose
Brand: JIAYAO/RUNXI/OEM/ODM
Price: 1 USD

Quality High Pressure Spiral Steel Wire Rubber Pipe SAE 100 R15 Heavy Duty Hydraulic Hose for sale

Brand Name : JIAYAO/RUNXI/OEM/ODM

Model Number : SAE100 R15

Certification : ISO9001:2008

Place of Origin : CHINA

MOQ : 1 Meter

Price : US$ 1 Meter

Payment Terms : L/C, T/T

Material : Nitrile Rubber

Capability : Rubber Oil Hose

Color : Black

Product Name : Wire Spiral Hydraulic Hose

Application : Oil Cooling System

Standard : SAE100 R15

Surface : Cloth Wrapped or Smooth

Feature : Flexible, Corrosion Resistant, Abrasion Resistant

Working Temperature : -40 to 121°c

Siza : 3/8"~1-1/2"

Contact Now

SAE R15 high pressure hydraulic hose for excavato

Application: This hose is very popular in high pressure working conditions and it is suitable for petroleum-based hydraulic oils.

Features:
1.The tube is made from black oil resistant synthetic rubber, making the hose widely used in delivering petroleum-based hydraulic oils.

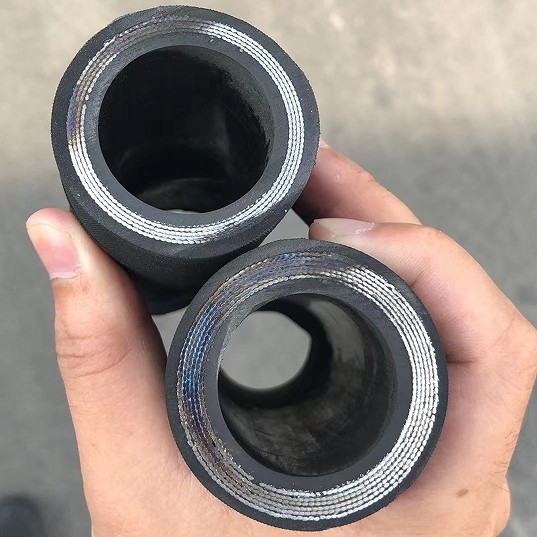

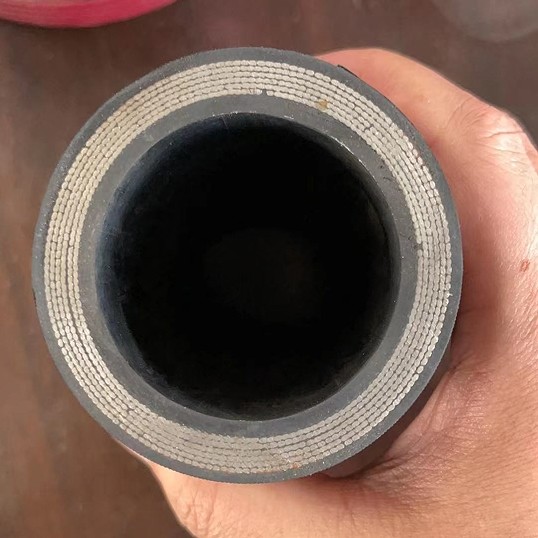

2.The reinforcement is made from multiple layers of high tensile and high strength thick spiraled steel wire in alternating direction, making the hose have very high working pressure.
3.The cover is made from high quality synthetic rubber, making the hose resistant to abrasion,corrosion,weather,ozone,aging and cut.

Applicable medium: petroleum-based hydraulic fluid
Inner rubber: heat-resistant oil synthetic rubber
Reinforcement layer: multi-layer ultra-high strength wire winding layer in alternating direction
Outer coating: weather resistant synthetic rubber
Temperature range: -40°C to +121°C

Designed for applications that provide steady system pressure, all sizes have a constant operating pressure of 6090 PSI. The hose is designed, manufactured and tested in accordance with the SAE 100R15 performance specification, with sizes ranging from 3/8 "to 1 1/2".

The hose series is of large caliber and consists of an inner layer of heat-resistant oil synthetic rubber, multiple layers of alternating directions of ultra-high strength wire winding and a weather-resistant synthetic rubber outer layer.

SIZE	SIZE	I.D		O.D		W.P		P.P		B.P		min B.R		W.T
mm	Inch	Min	Max	Min	Max	Mpa	Psi	Mpa	Psi	Mpa	Psi	inch	mm	Kg/m
10	3/8	9.3	10.1	20.3	23.3	42	6090	84	12180	168	24360	1.57	150	0.80
12.7	1/2	12.3	13.5	24.0	26.8	42	6090	34.5	12180	168	24360	1.97	200	0.95
19	3/4	18.6	19.8	32.0	36.1	42	6090	31.0	12180	168	24360	2.95	265	1.85
25	1	25.0	26.4	38.9	42.9	42	6090	27.6	12180	168	24360	3.95	330	2.90
31.5	1-1/4	31.4	33.0	48.4	51.5	42	6090	24.1	12180	168	24360	4.92	445	4.20
38	1-1/2	37.7	39.3	56.3	59.6	42	6090	20.7	12180	168	24360	5.31	530	5.60
